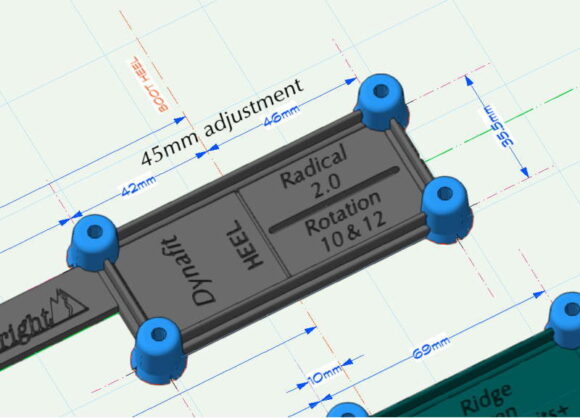

Coached a buddy swapping out Dynafit Rotation 10s for Salomon Shift MNC 10s. The rear, heel holes of the Rotations (35.5mm) lineup up fine with the Shifts (36mm) so we opted to use these two existing holes and adjust the heel hole layout as needed:

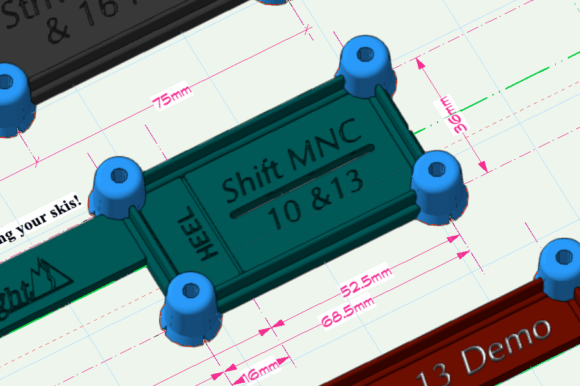

So we shifted the new Salomon Shift MNC rear layout tool accordingly and utilized the 45mm (IIRC) heel adjustment range:
Marked, punched, drilled, tapped, countersunk holes:
Calibrated and marked the cordless driver to ‘9’ with a ParkTool torque wrench @ 4Nm:
