Tools4Boards XACT 3 in 1 Tool Instructions

November 15, 2012 by



Xact All-in-one sharpens and bevels side edge, base edge and trims excess side wall. Simply turn knob to clamp file, or pull and turn knob to adjust bevel angle. Patented adjustment feature provides simple and accurate bevel angles. Ceramic rollers minimize friction and allow filings to fall away from base. Infinite bevel angle adjustment from 0° to 6°. Comfortable to use. Made of durable and impact resistant Lexan polycarbonate. Holds any length file or stone for side edges and includes high quality Swiss-made file blade for side and base edges.

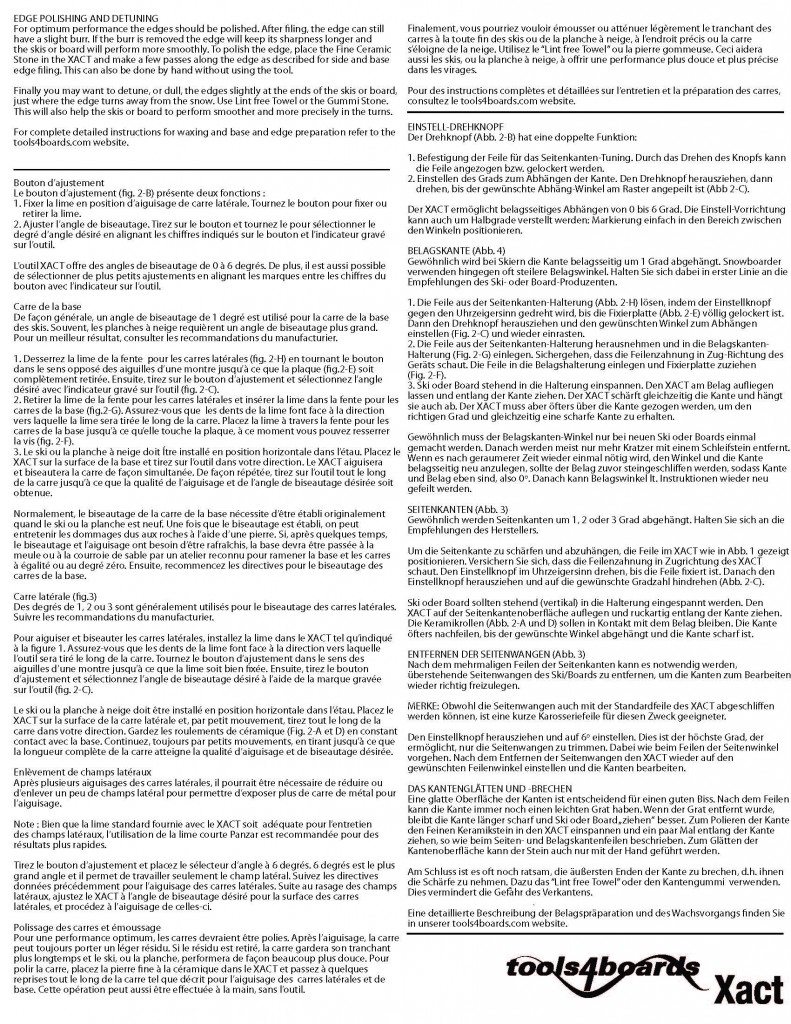

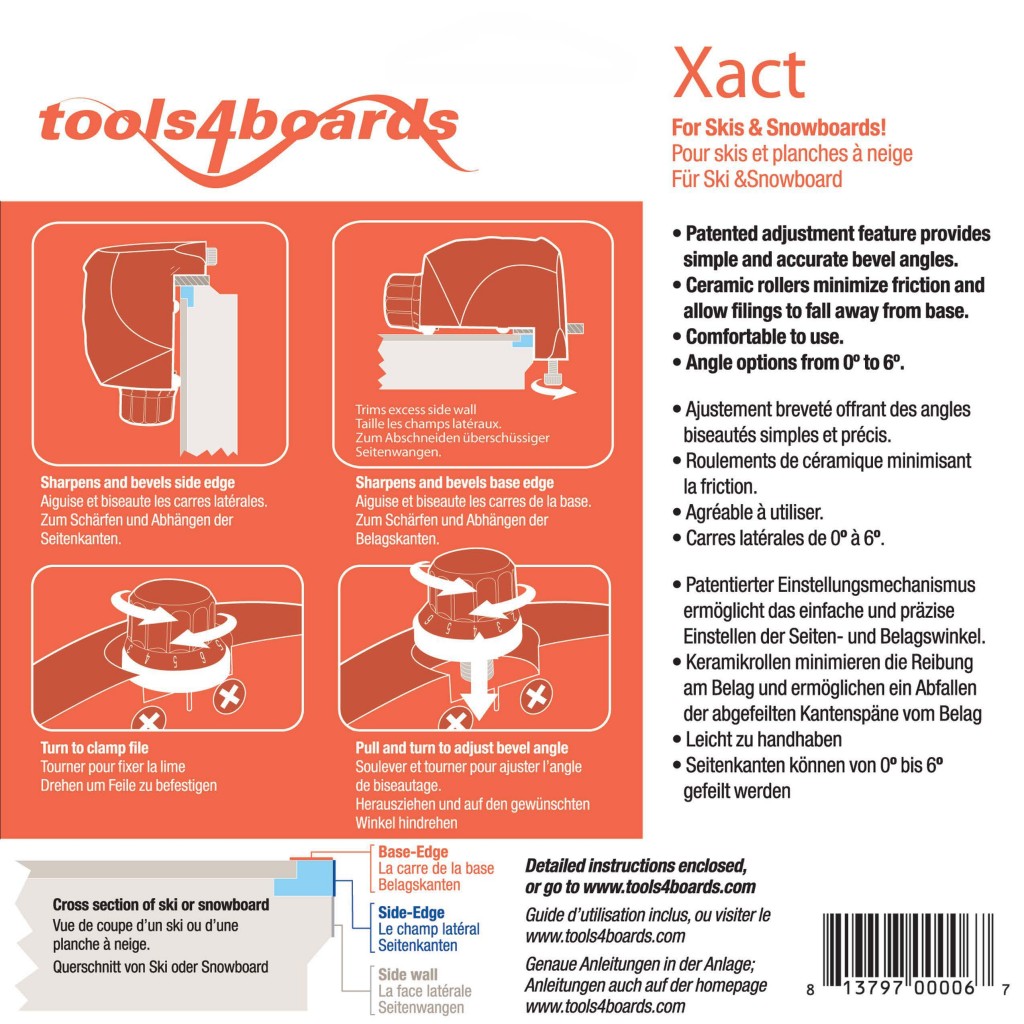

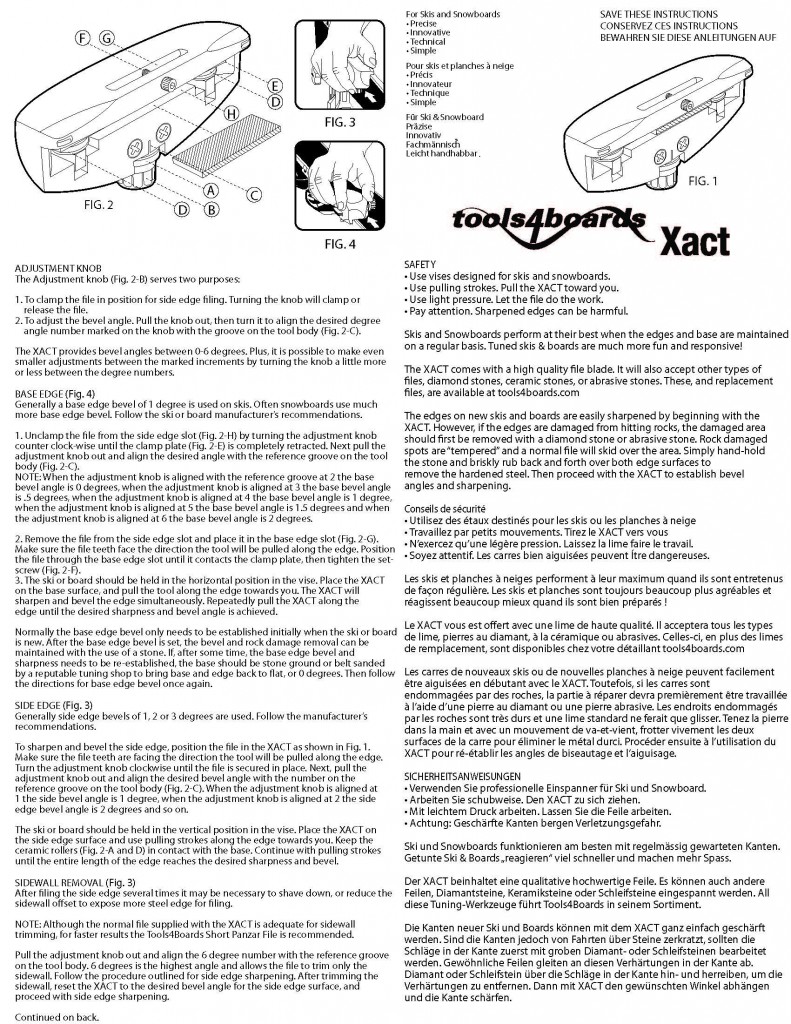

Tools4Boards XACT 3 in 1 Edge Tuning Tool Instructions or click on image below.





This entry was posted on November 15, 2012 at 5:00 pm and is filed under Resources. You can follow any responses to this entry through the RSS 2.0 feed.
